¶ How to Set the Shunt Value for the 2000A via CANbus
At this stage you will need root access to your GX device to turn on a hidden setting. This carries risks:
- You may brick your device
- You are opening an attack vector to your GX, and need to harden your network accordingly
- Certain changes will be reset on a Victron firmware update
See this link from Victron and make sure you know what you are doing: https://www.victronenergy.com/live/ccgx:root_access
A future Victron software upgrade will remove the root requirement and implement a simple setting in the GUI
This process requires Software build 2.17.55 or newer, and matching firmware on your WatchMon
This requires recent Victron firmware, make sure you have updated it.

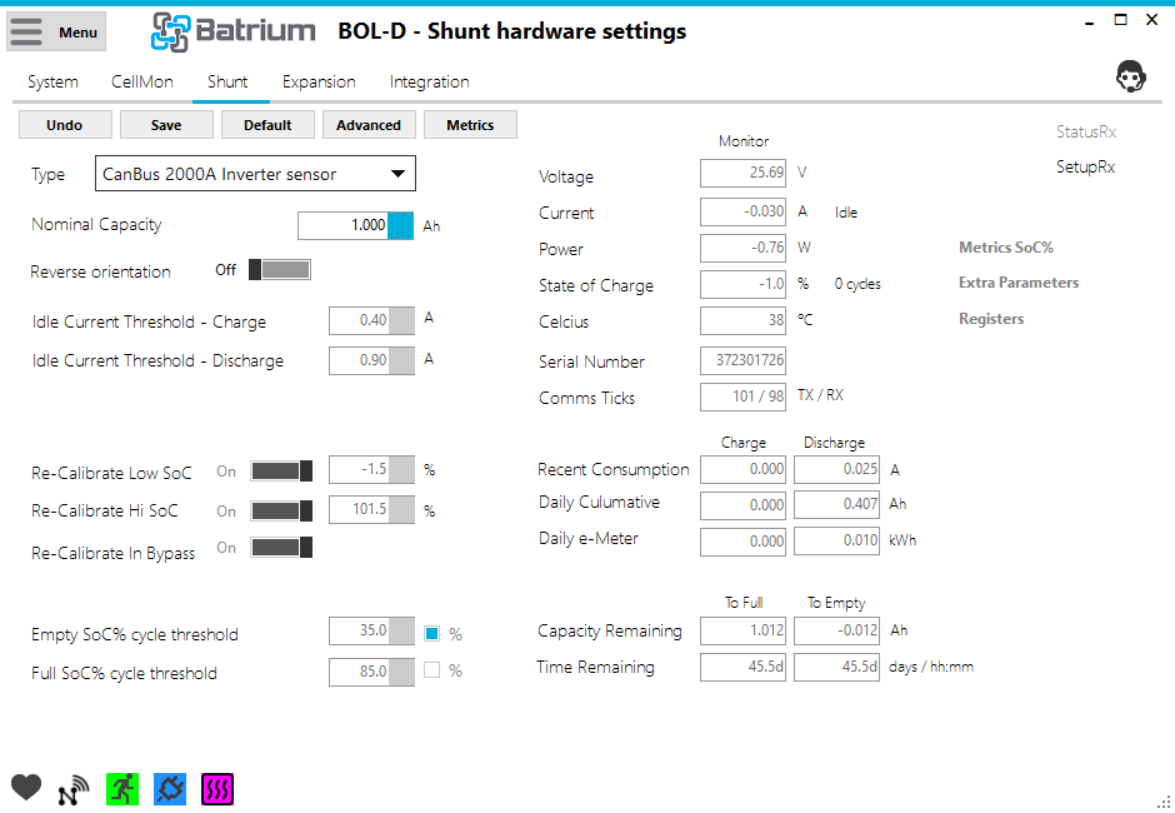

Administrative screen for the WatchMon supervisor hardware, and how to configure the hardware Shunt State of Charge settings if wanting to use the 2000A Shunt from Victron.
¶ 1. Navigate to the screen via the Hardware Menu option. Editing is only available when in 'Technician' mode.
¶ 2. Go to Integration and select the proper CANbus protocol (Victron GX). Click ‘Save’.
Victron should be running at least version 3 software or above.
¶ 3. Go to the Shunt tab and click ‘Edit’.

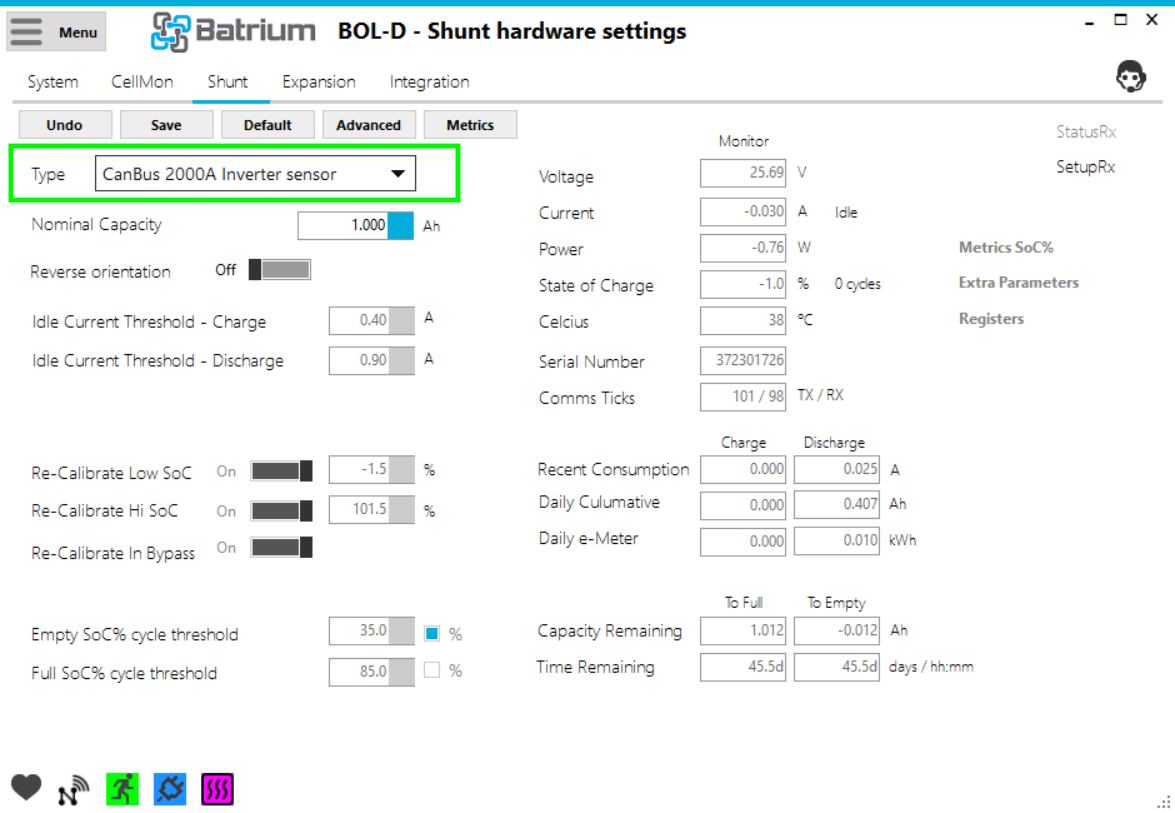

¶ 4. In the 'Type’ selection, choose ‘CANbus XXXA Inverter sensor’ for your shunt model (1000A, 2000A etc).

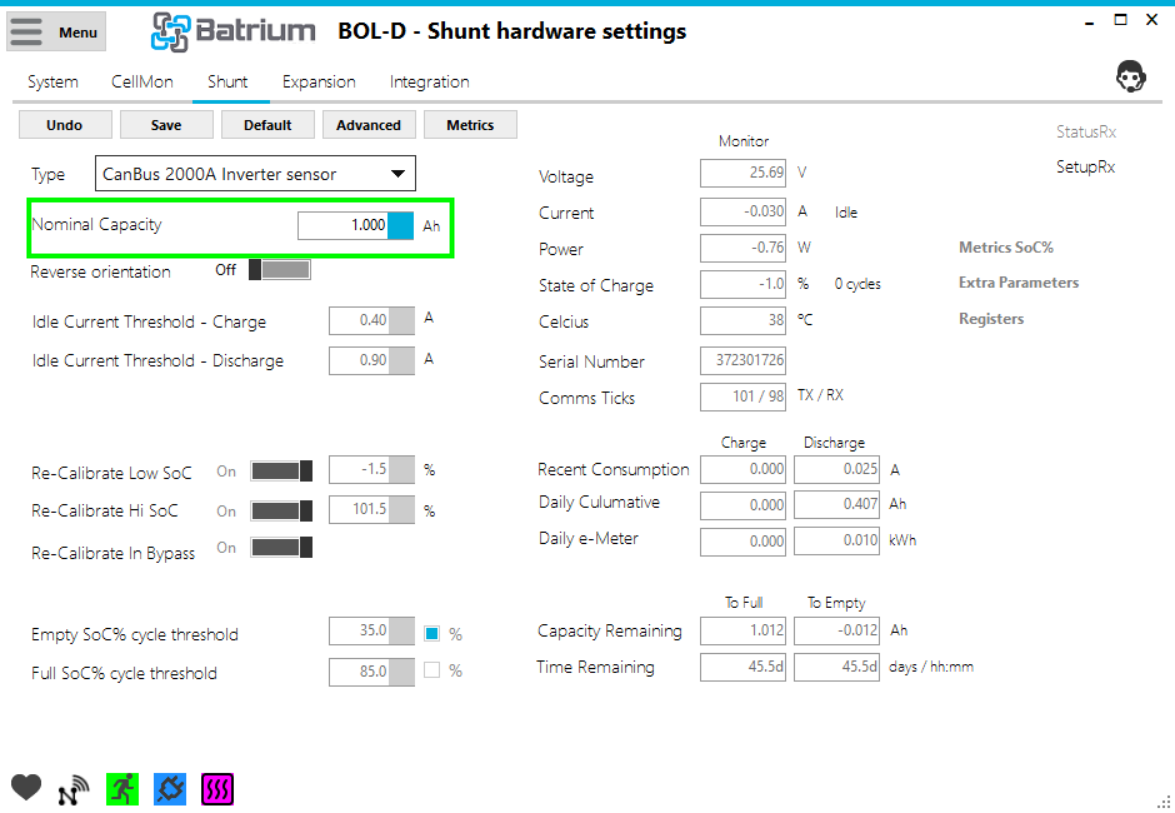

¶ 5. Specify the battery capacity Ah.

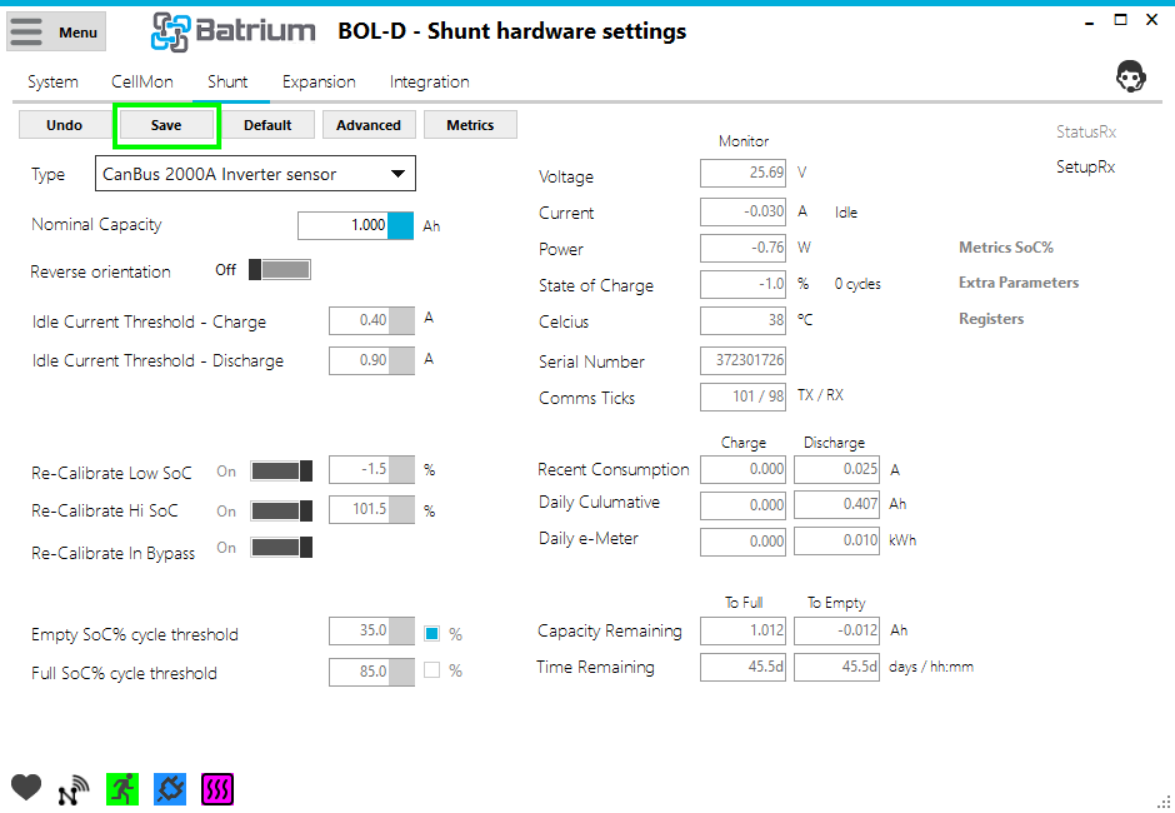

¶ 6. Click ‘Save’.
¶ 7. Configure your Victron system

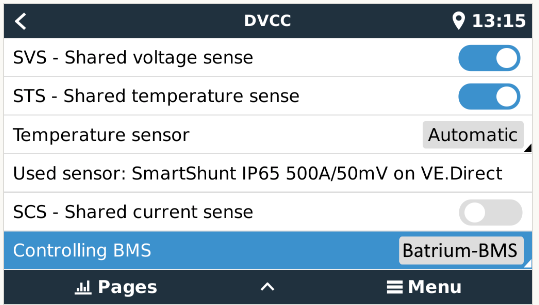

- Enable DVCC, then
- Select the SmartShunt as your battery monitor, and
- Set Batrium-BMS as the controlling BMS
¶ 8. Enable sending of CAN Shunt data on your GX device
- Obtain root access to the GX
- Run
dbus -y com.victronenergy.settings /Settings/SystemSetup/CanBmsSense SetValue 1
