Guide article of the new Toolkit3 app to allow users to configure the Thermal (heating/cooling) Control Settings.

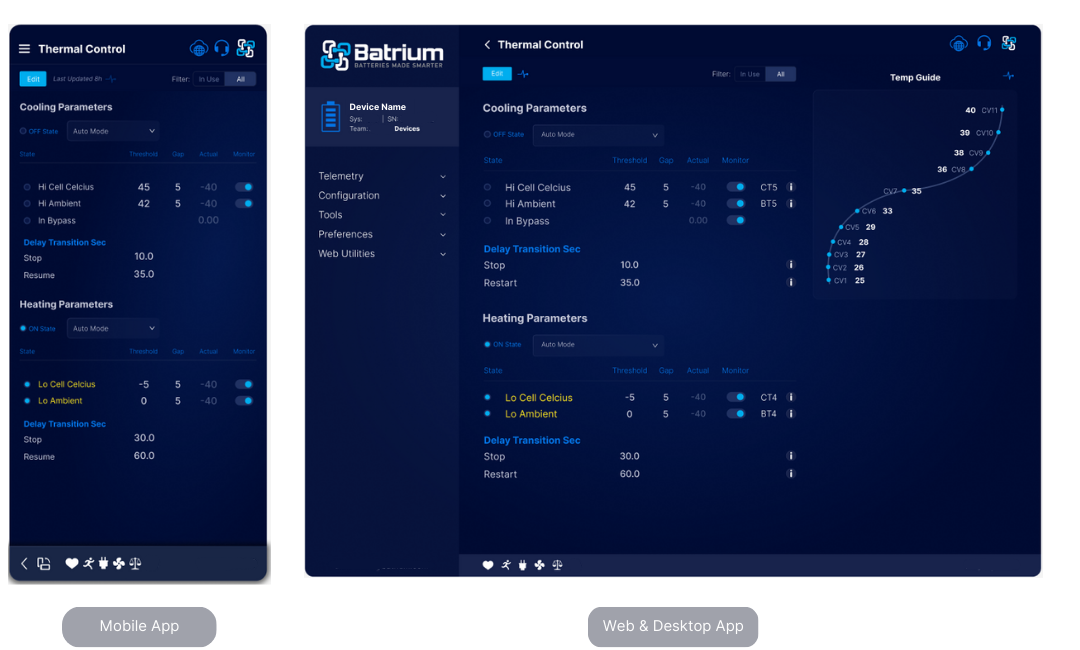

Navigate to the screen via the Menu and choose the Configuration tab. Choose Thermal Control from the drop-down menu.
¶ Field Definitions

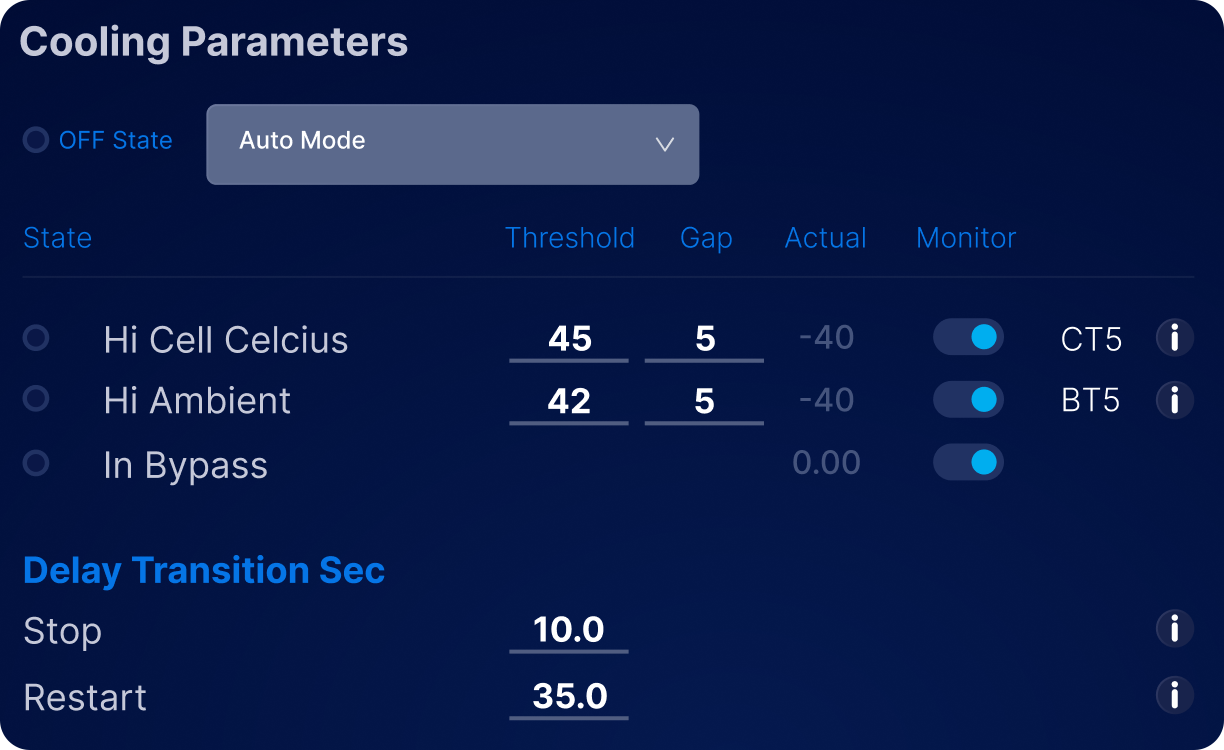

¶ Cooling Parameters
Operating mode for the cooling control logic
| Setting | Description |
|---|---|
| Auto | This will adopt the state calculated based on the thresholds specified. |
| Manual On | This will force the system state to be ON. |
| Manual Off | This will force the system state to be OFF. |
| Field | Description |
|---|---|
| Hi Cell Celcius (CT5) | Cell temperature threshold — if above this (and monitoring is enabled), starts cooling control. |
| Hi Ambient (BT5) | WatchMon supervisor temperature sensor — if above this (and monitoring is enabled), starts cooling. |
| In Bypass (FT1) | When monitoring is enabled, starts cooling control if any CellMon module enters bypass. |

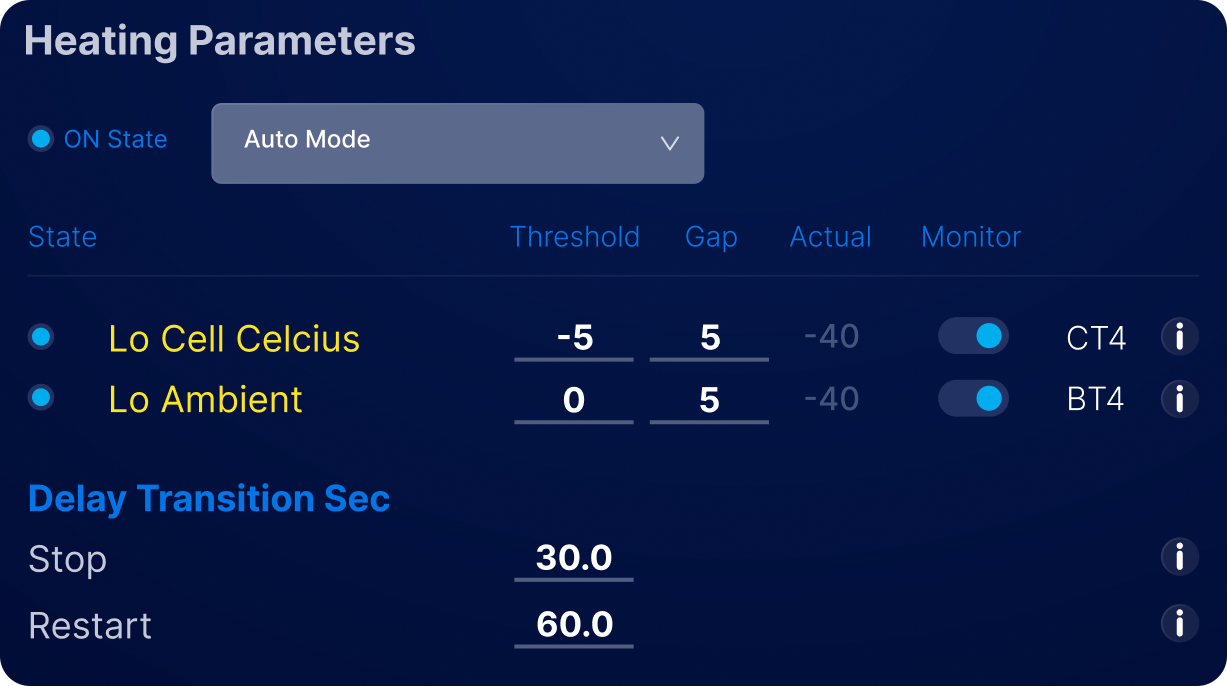

¶ Heating Parameters
Operating mode for the heating control logic
| Setting | Description |
|---|---|
| Auto | This will adopt the state calculated based on the thresholds specified. |
| Manual On | This will force the system state to be ON. |
| Manual Off | This will force the system state to be OFF. |
| Field | Description |
|---|---|
| Lo Cell Celcius (CT4) | Cell temperature threshold—if below this (and monitoring is enabled), starts heating control. |
| Lo Ambient (BT4) | WatchMon supervisor temperature sensor — if below this (and monitoring is enabled), starts heating. |
¶ Delay Transition Sec
| Field | Description |
|---|---|
| Stop (TE1/3) | Ensures that state change from ON to OFF exceeds specified seconds. |
| Resume (TE2/4) | Ensures that state change from OFF to ON exceeds specified seconds. |
