Details about linking to remote systems, typically via a communication link (CANbus)
Ideally, it is important to tune the settings of the BMS to be within the Inverter targets. This is to ensure that they are working together rather than against each other.
¶ Inverters Compatible via CANbus
From time to time, we implement new protocols and add them to this list so it's best to check back often.
The list below is valid as of 2.0.12 although custom documentation for each option is not.
| Inverter | Protocol | Compatibility |
|---|---|---|
| SMA Sunny Island | SMASunnyIslandV31 | Validated by Batrium |
| SMA SunnyBoy | SMA Sunny Boy Storage HV | Tested (Not Verified by Batrium yet) |
| SolaX | Solax SK control | Validated by Batrium |
| SolaX | Solax SK limited | Validated by Batrium |
| Brusa | Brusa NLG5 charger | Validated by Batrium |
| Brusa | Brusa NLG6 charger | Validated by Batrium |
| Victron | Victron GX Gateway | Validated by Batrium |
| IngeTeam (HV) | INGECON Storage | Validated by Batrium with the Manufacturer |
| Redback | Redback Hybrid SH5000 | Validated by Batrium |
| GoodWe | GoodWe SBP/ES | Validated by Batrium |
| Elcon/TC | Elcon/TC Charger | Validated by Batrium |
| En-Power | En-Power 500k | Validated by Batrium |
| En-Power | En-Power 250k | Validated by Batrium |
| Eltek FlatPack2 | Eltek FlatPack2 HE2000/48 | Validated by Batrium |
| Sofar | Sofar | Validated by Batrium |
| Project Lychee | LG RESU Emulator | Validated by Batrium |
| Pylontech (HV & LV) | Pylontech Emulator | Validated by Batrium |
| Schneider Conext Inverter | Not Yet Tested | |
| GoodWe 29.9K Inverter | BYD HVS Protocol | Tested (Not Verified by Batrium yet) |

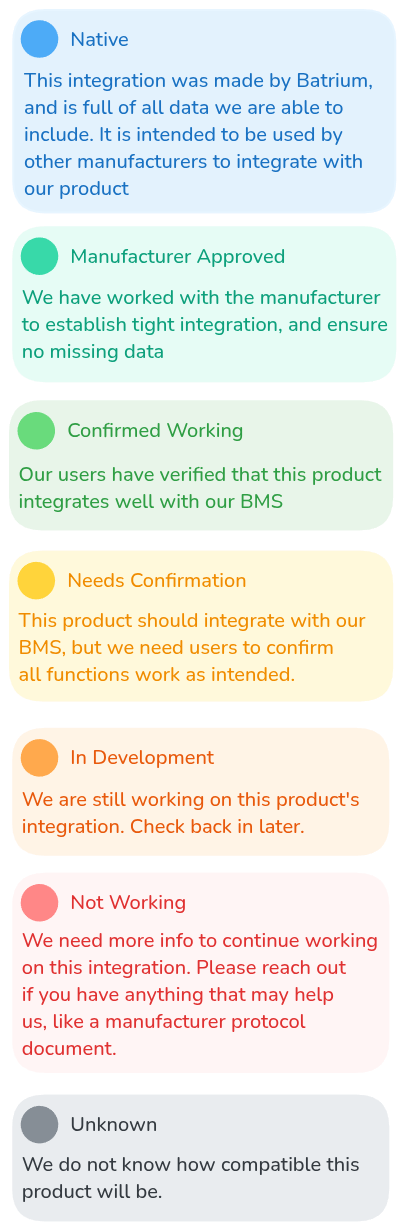

¶ Compatibility Status
Here is the Compatibility Status of each inverter to the Batrium BMS is categorized as:
| Status | Definition |
|---|---|
| Unknown | No known protocol yet |
| No | Not compatible at all |
| Validated by Batrium with the Manufacturer | Verified by the manufacturer (The only manufacturer that has validated a protocol is Ingeteam (for high voltage)) |
| Validated by Batrium | Batrium has done all the testing and is ready for use |
| Tested (Not Verified by Batrium yet) | A customer has anecdotally confirmed it works but the full gamut of testing by Batrium has not been done yet |
| Not Yet Tested | Testing by Batrium has not been done yet |
¶ Pylontech (HV and LV) or LG-RESU Battery Compatibility
We have built a CANbus profile that emulates the LG-Chem 6.4kw RESU battery. This should allow the use of most inverters that support the LG battery protocol.
- Look for Project Lychee in the CANbus profile.
- Look for Pylon for Pylontech LV
For Pylontech HV, please reach out to our team at info@batrium.com so we can verify other project details to make sure this will work.
¶ Native Protocols
For those wanting to communicate with the WatchMon, we offer several Native protocols that you can use:
¶ 1. WatchMon - CANbus Messages
A verbose protocol that has many fields you can use.
¶ 2. WatchMon - CANbus Native 2.0 Messages
More succinct with fewer fields.
¶ 3. WatchMon - WiFi UDP Protocol
Protocol for WiFI.
¶ Inverter Not on Compatible List
New inverters are continuously introduced to the market; unfortunately, we can't get access to test every single one that comes out.
We do have an emulator for the following 3 common batteries which many inverters are trying to be compatible with:
- LG RESU LV Battery CANbus Communication
- Pylon LV Battery CANbus Communication
- Pylon HV Battery CANbus Communication
Have a look at the manufacturer’s inverter datasheet to see if they are compatible with what is listed above or reach out to the manufacturer directly to verify.
¶ New CANbus Profile Request
Read the requirements and key tasks involved in completing BMS integration, which is outlined in the article linked above.
¶ Inverter Testing
Inverter Testing is done to confirm whether the inverter received the limits and status from the BMS and will start or stop charging/discharge accordingly.
¶ Wiring Diagram: Connecting to Inverter / Charger using CANbus
For other wiring guides, please refer to the full article at WatchMonCORE and Expansion Board 3 Hardware Guide and Pin Assignment.
¶ Changing Protocols: Update the Scaling on REMOTE Settings
- When changing the CANbus profile in the Integration Tab, make sure to update the scaling on the Control Logic: Remote.
- The scaling needs to be set to 'Default' [with one decimal place as the ratio should be 10] after changing protocols to make it compatible with the selected profile.
- Click ‘Save’.
Remember: If you change the CANbus profile without re-running the SETUP: Wizard, you will need to run the defaults on the control remote to ensure that the scaling is set correctly.
¶ Care to Share a CANbus-Integration Document?
We are growing our Inverter/Charger compatible list and we are open to getting community submissions!
If you would like to supply us with the information and documentation of the successful inverter integrations you have done with your projects, please feel free to email us at our support email with the following information:
- Photo of the wiring of the BMS to the inverter so we can see the communication
- Photos of the software screen of the inverter
- Indicate which one of our CANbus profiles you are using
- Manual Extract Report
- Other relevant information you think might be helpful
You can also submit it to our community to help others too!
